Multiple OLS Regression

Multiple OLS Estimation

Multiple Regression via lm()

  • Section 3.1 of Heiss (2020)

  • To estimate a multivariate model in R, we can use the lm() function:

    • the tilde (~) separates the dependent variable from the independent variables;
    • independent variables must be separated by +;
    • the constant term ( $\beta_0$) is included automatically by lm(). To remove it, include 0 in the formula.

Example 3.1: Determinants of College GPA in the United States (Wooldridge, 2006)

  • Consider the variables:
    • colGPA (college GPA): average college grade point average;
    • hsGPA (high school GPA): average high-school GPA;
    • ACT (achievement test score): the score on the college entrance achievement test.
  • Using the gpa1 dataset from the wooldridge package, we estimate the following model:

$$ \text{colGPA} = \beta_0 + \beta_1 \text{hsGPA} + \beta_2 \text{ACT} + u $$

# Load the gpa1 dataset
data(gpa1, package = "wooldridge")

# Estimate the model
GPAres = lm(colGPA ~ hsGPA + ACT, data = gpa1)
GPAres

##
## Call:
## lm(formula = colGPA ~ hsGPA + ACT, data = gpa1)
##
## Coefficients:
## (Intercept)        hsGPA          ACT
##    1.286328     0.453456     0.009426
  • We can inspect the estimation in more detail by applying summary() to the object returned by lm():
summary(GPAres)

##
## Call:
## lm(formula = colGPA ~ hsGPA + ACT, data = gpa1)
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -0.85442 -0.24666 -0.02614  0.28127  0.85357
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept) 1.286328   0.340822   3.774 0.000238 ***
## hsGPA       0.453456   0.095813   4.733 5.42e-06 ***
## ACT         0.009426   0.010777   0.875 0.383297
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.3403 on 138 degrees of freedom
## Multiple R-squared:  0.1764,	Adjusted R-squared:  0.1645
## F-statistic: 14.78 on 2 and 138 DF,  p-value: 1.526e-06

OLS in Matrix Form

Notation

  • For more details on matrix-form OLS, see Appendix E of Wooldridge (2006).

  • Consider the multivariate model with $K$ regressors for observation $i$: $$ y_i = \beta_0 + \beta_1 x_{i1} + \beta_2 x_{i2} + … + \beta_K x_{iK} + u_i, \qquad i=1, 2, …, N \tag{E.1} $$ where $N$ is the number of observations.

  • Define the parameter column vector, $\boldsymbol{\beta}$, and the row vector of explanatory variables for observation $i$, $\boldsymbol{x}_i$: $$ \underset{1 \times K}{\boldsymbol{x}_i} = \left[ \begin{matrix} 1 & x_{i1} & x_{i2} & \cdots & x_{iK} \end{matrix} \right] \qquad \text{e} \qquad \underset{(K+1) \times 1}{\boldsymbol{\beta}} = \left[ \begin{matrix} \beta_0 \\ \beta_1 \\ \beta_2 \\ \vdots \\ \beta_K \end{matrix} \right],$$

  • Notice that the inner product $\boldsymbol{x}_i \boldsymbol{\beta}$ is:

\begin{align} \underset{1 \times 1}{\boldsymbol{x}_i \boldsymbol{\beta}} &= \left[ \begin{matrix} 1 & x_{i1} & x_{i2} & \cdots & x_{iK} \end{matrix} \right] \left[ \begin{matrix} \beta_0 \\ \beta_1 \\ \beta_2 \\ \vdots \\ \beta_K \end{matrix} \right]\\ &= 1.\beta_0 + x_{i1} \beta_1 + x_{i2} \beta_2 + \cdots + x_{iK} \beta_K, \end{align}
  • Therefore, equation (3.1) can be rewritten, for $i=1, 2, ..., N$, as

$$ y_i = \underbrace{\beta_0 + \beta_1 x_{i1} + \beta_2 x_{i2} + … + \beta_K x_{iK}}_{\boldsymbol{x}_i \boldsymbol{\beta}} + u_i = \boldsymbol{x}_i \boldsymbol{\beta} + u_i, \tag{E.2} $$

  • Let $\boldsymbol{X}$ denote the matrix containing all $N$ observations for the $K+1$ explanatory variables:
$$ \underset{N \times (K+1)}{\boldsymbol{X}} = \left[ \begin{matrix} \boldsymbol{x}_1 \\ \boldsymbol{x}_2 \\ \vdots \\ \boldsymbol{x}_N \end{matrix} \right] = \left[ \begin{matrix} 1 & x_{11} & x_{12} & \cdots & x_{1K} \\ 1 & x_{21} & x_{22} & \cdots & x_{2K} \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ 1 & x_{N1} & x_{N2} & \cdots & x_{NK} \end{matrix} \right] , $$
  • We can then stack the equations for all $i=1, 2, ..., N$ and obtain:
\begin{align} \boldsymbol{y} &= \boldsymbol{X} \boldsymbol{\beta} + \boldsymbol{u} \tag{E.3} \\ &= \left[ \begin{matrix} 1 & x_{11} & x_{12} & \cdots & x_{1K} \\ 1 & x_{21} & x_{22} & \cdots & x_{2K} \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ 1 & x_{N1} & x_{N2} & \cdots & x_{NK} \end{matrix} \right] \left[ \begin{matrix} \beta_0 \\ \beta_1 \\ \beta_2 \\ \vdots \\ \beta_K \end{matrix} \right] + \left[ \begin{matrix}u_1 \\ u_2 \\ \vdots \\ u_N \end{matrix} \right] \\ &= \left[ \begin{matrix} \beta_0. 1 + \beta_1 x_{11} + \beta_2 x_{12} + ... + \beta_K x_{1K} \\ \beta_0 .1 + \beta_1 x_{21} + \beta_2 x_{22} + ... + \beta_K x_{2K} \\ \vdots \\ \beta_0. 1 + \beta_1 x_{N1} + \beta_2 x_{N2} + ... + \beta_K x_{NK} \end{matrix} \right] + \left[ \begin{matrix}u_1 \\ u_2 \\ \vdots \\ u_N \end{matrix} \right]\\ &= \left[ \begin{matrix} \beta_0. 1 + \beta_1 x_{11} + \beta_2 x_{12} + ... + \beta_K x_{1K} + u_1 \\ \beta_0 .1 + \beta_1 x_{21} + \beta_2 x_{22} + ... + \beta_K x_{2K} + u_2 \\ \vdots \\ \beta_0. 1 + \beta_1 x_{N1} + \beta_2 x_{N2} + ... + \beta_K x_{NK} + u_N \end{matrix} \right]\\ &= \left[ \begin{matrix}y_1 \\ y_2 \\ \vdots \\ y_N \end{matrix} \right] = \boldsymbol{y} \end{align}

Analytical Estimation in R

Matrix/Vector Operations in R
  • First, let us review the matrix and vector operations used in R:
    • Transpose of a matrix or vector: t()
    • Matrix or vector multiplication (inner product): %*%
    • Inverse of a square matrix: solve()
# As an example, create a 4x2 matrix A
A = matrix(1:8, nrow=4, ncol=2)
A

##      [,1] [,2]
## [1,]    1    5
## [2,]    2    6
## [3,]    3    7
## [4,]    4    8

# Transpose of A (2x4)
t(A)

##      [,1] [,2] [,3] [,4]
## [1,]    1    2    3    4
## [2,]    5    6    7    8

# Matrix product A'A (2x2)
t(A) %*% A

##      [,1] [,2]
## [1,]   30   70
## [2,]   70  174

# Inverse of A'A (2x2)
solve( t(A) %*% A )

##          [,1]     [,2]
## [1,]  0.54375 -0.21875
## [2,] -0.21875  0.09375

Example: Determinants of College GPA in the United States (Wooldridge, 2006)

  • We want to estimate the model $$ \text{colGPA} = \beta_0 + \beta_1 \text{hsGPA} + \beta_2 \text{ACT} + u $$

  • Using the gpa1 dataset, we create the dependent-variable vector y and the matrix of independent variables X:

# Load the gpa1 dataset
data(gpa1, package = "wooldridge")

# Create vector y
y = as.matrix(gpa1[,"colGPA"]) # convert the data-frame column into a matrix
head(y)

##      [,1]
## [1,]  3.0
## [2,]  3.4
## [3,]  3.0
## [4,]  3.5
## [5,]  3.6
## [6,]  3.0

# Create the covariate matrix X with a leading column of 1s
X = cbind( const=1, gpa1[, c("hsGPA", "ACT")] ) # bind 1s to the covariates
X = as.matrix(X) # convert to matrix
head(X)

##   const hsGPA ACT
## 1     1   3.0  21
## 2     1   3.2  24
## 3     1   3.6  26
## 4     1   3.5  27
## 5     1   3.9  28
## 6     1   3.4  25

# Retrieve N and K
N = nrow(gpa1)
N

## [1] 141

K = ncol(X) - 1
K

## [1] 2
1. OLS Estimates $\hat{\boldsymbol{\beta}}$
$$ \hat{\boldsymbol{\beta}} = \left[ \begin{matrix} \hat{\beta}_0 \\ \hat{\beta}_1 \\ \hat{\beta}_2 \\ \vdots \\ \hat{\beta}_K \end{matrix} \right] = (\boldsymbol{X}'\boldsymbol{X})^{-1} \boldsymbol{X}' \boldsymbol{y} \tag{3.2} $$

In R:

bhat = solve( t(X) %*% X ) %*% t(X) %*% y
bhat

##              [,1]
## const 1.286327767
## hsGPA 0.453455885
## ACT   0.009426012
2. Fitted Values $\hat{\boldsymbol{y}}$
$$ \hat{\boldsymbol{y}} = \boldsymbol{X} \hat{\boldsymbol{\beta}} $$

In R:

yhat = X %*% bhat
head(yhat)

##       [,1]
## 1 2.844642
## 2 2.963611
## 3 3.163845
## 4 3.127926
## 5 3.318734
## 6 3.063728
3. Residuals $\hat{\boldsymbol{u}}$
$$ \hat{\boldsymbol{u}} = \boldsymbol{y} - \hat{\boldsymbol{y}} \tag{3.3} $$

In R:

uhat = y - yhat
head(uhat)

##          [,1]
## 1  0.15535832
## 2  0.43638918
## 3 -0.16384523
## 4  0.37207430
## 5  0.28126580
## 6 -0.06372813
4. Error-Term Variance $S^2$
$$ S^2 = \frac{\hat{\boldsymbol{u}}'\hat{\boldsymbol{u}}}{N-K-1} \tag{3.4} $$

In R, since $S^2$ is a scalar, it is convenient to convert the resulting 1x1 matrix into a number using as.numeric():

S2 = as.numeric( t(uhat) %*% uhat / (N-K-1) )
S2

## [1] 0.1158148
5. Variance-Covariance Matrix of the Estimator $\widehat{\text{Var}}(\hat{\boldsymbol{\beta}})$
$$ \widehat{\text{Var}}(\hat{\boldsymbol{\beta}}) = S^2 (\boldsymbol{X}'\boldsymbol{X})^{-1} \tag{3.5} $$

In R, since $S^2$ is a scalar, it is convenient to convert the resulting 1x1 matrix into a number using as.numeric():

V_bhat = S2 * solve( t(X) %*% X )
V_bhat

##              const         hsGPA           ACT
## const  0.116159717 -0.0226063687 -0.0015908486
## hsGPA -0.022606369  0.0091801149 -0.0003570767
## ACT   -0.001590849 -0.0003570767  0.0001161478
6. Standard Errors of the Estimator $\text{se}(\hat{\boldsymbol{\beta}})$

These are the square roots of the main diagonal of the estimator’s variance-covariance matrix.

se_bhat = sqrt( diag(V_bhat) )
se_bhat

##      const      hsGPA        ACT
## 0.34082212 0.09581292 0.01077719
Comparing lm() and Analytical Estimates
  • Up to this point, we have obtained the estimates $\hat{\boldsymbol{\beta}}$ and their standard errors $\text{se}(\hat{\boldsymbol{\beta}})$:
cbind(bhat, se_bhat)

##                      se_bhat
## const 1.286327767 0.34082212
## hsGPA 0.453455885 0.09581292
## ACT   0.009426012 0.01077719
  • To complete inference, we still need to compute the t statistics and p-values:
summary(GPAres)$coef

##                Estimate Std. Error   t value     Pr(>|t|)
## (Intercept) 1.286327767 0.34082212 3.7741910 2.375872e-04
## hsGPA       0.453455885 0.09581292 4.7327219 5.421580e-06
## ACT         0.009426012 0.01077719 0.8746263 3.832969e-01

Multivariate OLS Inference

The t Test

  • Section 4.1 of Heiss (2020)

  • After estimation, it is important to test hypotheses of the form $$ H_0: \ \beta_j = a_j \tag{4.1} $$ where $a_j$ is a constant and $j$ indexes one of the $K+1$ estimated parameters.

  • The alternative hypothesis for a two-sided test is $$ H_1: \ \beta_j \neq a_j \tag{4.2} $$ whereas, for a one-sided test, it is $$ H_1: \ \beta_j > a_j \qquad \text{ou} \qquad H_1: \ \beta_j < a_j \tag{4.3} $$

  • These hypotheses can be tested conveniently with the t test: $$ t = \frac{\hat{\beta}_j - a_j}{\text{se}(\hat{\beta}_j)} \tag{4.4} $$

  • Frequently, we conduct a two-sided test with $a_j=0$ to determine whether $\hat{\beta}_j$ is statistically significant; that is, whether the explanatory variable has a statistically nonzero effect on the dependent variable:

\begin{align} H_0: \ \beta_j=0, \qquad H_1: \ \beta_j\neq 0 \tag{4.5}\\ t_{\hat{\beta}_j} = \frac{\hat{\beta}_j}{\text{se}(\hat{\beta}_j)} \tag{4.6} \end{align}

  • There are three common ways to evaluate this hypothesis.

  • (i) The first is to compare the t statistic with the critical value c for a significance level $\alpha$: $$ \text{Reject } H_0 \text{ if:} \qquad | t_{\hat{\beta}_j} | > c. $$

  • Usually, we set $\alpha = 5\%$, in which case the critical value $c$ is close to 2 for a reasonable number of degrees of freedom, approaching the normal critical value of 1.96.


  • (ii) Another way to evaluate the null is through the p-value, which indicates how plausible it is that $\hat{\beta}_j$ is not an extreme draw under the null hypothesis (that is, how plausible it is that the true value equals $a_j = 0$).

$$ p_{\hat{\beta}_j} = 2.F_{t_{(N-K-1)}}(-|t_{\hat{\beta}_j}|), \tag{4.7} $$ where $F_{t_{(N-K-1)}}(\cdot)$ is the CDF of a t distribution with $(N-K-1)$ degrees of freedom.

  • Therefore, we reject $H_0$ when the p-value is smaller than the chosen significance level $\alpha$:
$$ \text{Reject } H_0 \text{ if:} \qquad p_{\hat{\beta}_j} \le \alpha $$
  • (iii) The third way to evaluate the null is through the confidence interval: $$ \hat{\beta}_j\ \pm\ c . \text{se}(\hat{\beta}_j) \tag{4.8} $$
  • In this case, we reject the null when $a_j$ lies outside the confidence interval.

(Continued) Example: Determinants of College GPA in the United States (Wooldridge, 2006)

  • Assume $\alpha = 5\%$ and a two-sided test with $a_j = 0$.
7. t Statistic
$$ t_{\hat{\beta}_j} = \frac{\hat{\beta}_j}{\text{se}(\hat{\beta}_j)} \tag{4.6} $$

In R:

# Compute the t statistics
t_bhat = bhat / se_bhat
t_bhat

##            [,1]
## const 3.7741910
## hsGPA 4.7327219
## ACT   0.8746263
8. Evaluating the Null Hypotheses
# define the significance level
alpha = 0.05
c = qt(1 - alpha/2, N-K-1) # critical value for a two-sided test
c

## [1] 1.977304

# (A) Compare the t statistic with the critical value
abs(t_bhat) > c # evaluate H0

##        [,1]
## const  TRUE
## hsGPA  TRUE
## ACT   FALSE

# (B) Compare the p-value with the 5% significance level
p_bhat = 2 * pt(-abs(t_bhat), N-K-1)
round(p_bhat, 5) # rounded for easier reading

##          [,1]
## const 0.00024
## hsGPA 0.00001
## ACT   0.38330

p_bhat < 0.05 # evaluate H0

##        [,1]
## const  TRUE
## hsGPA  TRUE
## ACT   FALSE

# (C) Check whether zero lies outside the confidence interval
ci = cbind(bhat - c*se_bhat, bhat + c*se_bhat) # evaluate H0
ci

##              [,1]       [,2]
## const  0.61241898 1.96023655
## hsGPA  0.26400467 0.64290710
## ACT   -0.01188376 0.03073578
Comparing lm() and Analytical Estimates
  • Results computed analytically (“by hand”)
cbind(bhat, se_bhat, t_bhat, p_bhat) # coefficients

##                      se_bhat
## const 1.286327767 0.34082212 3.7741910 2.375872e-04
## hsGPA 0.453455885 0.09581292 4.7327219 5.421580e-06
## ACT   0.009426012 0.01077719 0.8746263 3.832969e-01

ci # confidence intervals

##              [,1]       [,2]
## const  0.61241898 1.96023655
## hsGPA  0.26400467 0.64290710
## ACT   -0.01188376 0.03073578
  • Results obtained with lm()
summary(GPAres)$coef

##                Estimate Std. Error   t value     Pr(>|t|)
## (Intercept) 1.286327767 0.34082212 3.7741910 2.375872e-04
## hsGPA       0.453455885 0.09581292 4.7327219 5.421580e-06
## ACT         0.009426012 0.01077719 0.8746263 3.832969e-01

confint(GPAres)

##                   2.5 %     97.5 %
## (Intercept)  0.61241898 1.96023655
## hsGPA        0.26400467 0.64290710
## ACT         -0.01188376 0.03073578

Reporting Regression Results

  • Section 4.4 of Heiss (2020)
  • Here we use an example to show how to report the results of several regressions using the stargazer package.

Example 4.10: The Salary-Benefits Tradeoff for Teachers (Wooldridge, 2006)

  • We use the meap93 dataset from the wooldridge package and estimate the model

$$ \log{\text{salary}} = \beta_0 + \beta_1. (\text{benefits/salary}) + \text{outros_fatores} + u $$

  • First, load the dataset and create the benefits-to-salary ratio (b_s):
data(meap93, package="wooldridge") # load dataset

# Define new variable
meap93$b_s = meap93$benefits / meap93$salary
  • Now estimate several models:
    • Model 1: b_s only
    • Model 2: adds log(enroll) and log(staff) to Model 1
    • Model 3: adds droprate and gradrate to Model 2
  • Then summarize the results in a single table using stargazer() from the stargazer package:
    • type="text" prints the output directly in the console; otherwise, it returns LaTeX code
    • keep.stat=c("n", "rsq") keeps only the number of observations and the R$^2$
    • star.cutoffs=c(.05, .01, .001) sets significance cutoffs at 5%, 1%, and 0.1%
# Estimate the three models
model1 = lm(log(salary) ~ b_s, meap93)
model2 = lm(log(salary) ~ b_s + log(enroll) + log(staff), meap93)
model3 = lm(log(salary) ~ b_s + log(enroll) + log(staff) + droprate + gradrate, meap93)

# Summarize them in a single table
library(stargazer)

##
## Please cite as:

##  Hlavac, Marek (2022). stargazer: Well-Formatted Regression and Summary Statistics Tables.

##  R package version 5.2.3. https://CRAN.R-project.org/package=stargazer

stargazer(list(model1, model2, model3), type="text", keep.stat=c("n", "rsq"),
          star.cutoffs=c(.05, .01, .001))

##
## ============================================
##                    Dependent variable:
##              -------------------------------
##                        log(salary)
##                 (1)        (2)        (3)
## --------------------------------------------
## b_s          -0.825***  -0.605***  -0.589***
##               (0.200)    (0.165)    (0.165)
##
## log(enroll)              0.087***  0.088***
##                          (0.007)    (0.007)
##
## log(staff)              -0.222***  -0.218***
##                          (0.050)    (0.050)
##
## droprate                            -0.0003
##                                     (0.002)
##
## gradrate                             0.001
##                                     (0.001)
##
## Constant     10.523***  10.844***  10.738***
##               (0.042)    (0.252)    (0.258)
##
## --------------------------------------------
## Observations    408        408        408
## R2             0.040      0.353      0.361
## ============================================
## Note:          *p<0.05; **p<0.01; ***p<0.001
  • It is common for econometric results to be reported with asterisks (*), which indicate the significance level of the estimates.
  • More asterisks indicate stronger statistical significance and make it easier to identify coefficients that are statistically different from zero.

Qualitative Regressors

  • Many variables of interest are qualitative rather than quantitative.
  • Examples include sex, race, employment status, marital status, and brand choice.

Dummy Variables

  • Section 7.1 of Heiss (2020)
  • If a qualitative variable is already stored in the data as a binary indicator (that is, with values 0 and 1), it can be included directly in a linear regression.
  • When a dummy variable is used in a model, its coefficient captures the difference in the intercept between groups (Wooldridge, 2006, Section 7.2).
Example 7.5: The Log Wage Equation (Wooldridge, 2006)
  • We use the wage1 dataset from the wooldridge package.
  • Estimate the model:

\begin{align} \text{wage} = &\beta_0 + \beta_1 \text{female} + \beta_2 \text{educ} + \beta_3 \text{exper} + \beta_4 \text{exper}^2 +\\ &\beta_5 \text{tenure} + \beta_6 \text{tenure}^2 + u \tag{7.6} \end{align} where:

  • wage: average hourly wage
  • female: dummy equal to 1 for women and 0 for men
  • educ: years of education
  • exper: years of labor-market experience (expersq = years squared)
  • tenure: years with the current employer (tenursq = years squared)
# Load the required dataset
data(wage1, package="wooldridge")

# Estimate the model
reg_7.1 = lm(wage ~ female + educ + exper + expersq + tenure + tenursq, data=wage1)
round( summary(reg_7.1)$coef, 4 )

##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)  -2.1097     0.7107 -2.9687   0.0031
## female       -1.7832     0.2572 -6.9327   0.0000
## educ          0.5263     0.0485 10.8412   0.0000
## exper         0.1878     0.0357  5.2557   0.0000
## expersq      -0.0038     0.0008 -4.9267   0.0000
## tenure        0.2117     0.0492  4.3050   0.0000
## tenursq      -0.0029     0.0017 -1.7473   0.0812
  • Women (female = 1) earn about $1.78 less per hour on average than men (female = 0).
  • This difference is statistically significant because the p-value for female is below 5%.

Variables with Multiple Categories

  • Section 7.3 of Heiss (2020)
  • When a categorical variable has more than two categories, we cannot simply treat it as if it were a binary dummy.
  • Instead, we must create one dummy variable for each category.
  • When estimating the model, one of these categories must be omitted to avoid perfect multicollinearity:
    • once all but one dummies are known, the omitted one is determined automatically;
    • if all other dummies are zero, the omitted dummy must be one;
    • if another dummy equals one, the omitted dummy must equal zero.
  • The omitted category becomes the reference group for interpreting the estimated coefficients.
Example: The Effect of a Minimum-Wage Increase on Employment (Card and Krueger, 1994)
  • In 1992, the state of New Jersey (NJ) raised the minimum wage.
  • To evaluate whether the policy affected employment, the neighboring state of Pennsylvania (PA) was used as a comparison group because it was considered similar to NJ.
  • We estimate the following model:

$$` \text{diff_fte} = \beta_0 + \beta_1 \text{nj} + \beta_2 \text{chain} + \beta_3 \text{hrsopen} + u $$ where:

  • diff_emptot: difference in the number of employees between Feb/1992 and Nov/1992
  • nj: dummy equal to 1 for New Jersey and 0 for Pennsylvania
  • chain: fast-food chain: (1) Burger King (bk), (2) KFC (kfc), (3) Roy’s (roys), and (4) Wendy’s (wendys)
  • hrsopen: hours open per day
card1994 = read.csv("https://fhnishida.netlify.app/project/rec2301/card1994.csv")
head(card1994) # inspect the first 6 rows

##   sheet nj chain hrsopen diff_fte
## 1    46  0     1    16.5   -16.50
## 2    49  0     2    13.0    -2.25
## 3    56  0     4    12.0   -14.00
## 4    61  0     4    12.0    11.50
## 5   445  0     1    18.0   -41.50
## 6   451  0     1    24.0    13.00
  • Notice that the categorical variable chain is coded with numbers rather than restaurant names.
  • This is common in datasets because numeric coding uses less storage.
  • If we estimate the regression using chain in this form, the model incorrectly treats it as a continuous variable:
lm(diff_fte ~ nj + hrsopen + chain, data=card1994)

##
## Call:
## lm(formula = diff_fte ~ nj + hrsopen + chain, data = card1994)
##
## Coefficients:
## (Intercept)           nj      hrsopen        chain
##     0.40284      4.61869     -0.28458     -0.06462
  • This specification implies that moving from bk (1) to kfc (2), or from kfc (2) to roys (3), or from roys (3) to wendys (4), has a linear effect on employment changes, which does not make sense.
  • Therefore, we need to create dummy variables for each category:
# Create one dummy for each category
card1994$bk = ifelse(card1994$chain==1, 1, 0)
card1994$kfc = ifelse(card1994$chain==2, 1, 0)
card1994$roys = ifelse(card1994$chain==3, 1, 0)
card1994$wendys = ifelse(card1994$chain==4, 1, 0)

# View the first rows
head(card1994)

##   sheet nj chain hrsopen diff_fte bk kfc roys wendys
## 1    46  0     1    16.5   -16.50  1   0    0      0
## 2    49  0     2    13.0    -2.25  0   1    0      0
## 3    56  0     4    12.0   -14.00  0   0    0      1
## 4    61  0     4    12.0    11.50  0   0    0      1
## 5   445  0     1    18.0   -41.50  1   0    0      0
## 6   451  0     1    24.0    13.00  1   0    0      0
  • It is also possible to create dummies more easily with the fastDummies package.
  • Notice that if we know three of the chain dummies, we automatically know the fourth, because each store belongs to exactly one chain and there can be only one 1 in each row.
  • Therefore, including all four dummies in the regression creates perfect multicollinearity:
lm(diff_fte ~ nj + hrsopen + bk + kfc + roys + wendys, data=card1994)

##
## Call:
## lm(formula = diff_fte ~ nj + hrsopen + bk + kfc + roys + wendys,
##     data = card1994)
##
## Coefficients:
## (Intercept)           nj      hrsopen           bk          kfc         roys
##    2.097621     4.859363    -0.388792    -0.005512    -1.997213    -1.010903
##      wendys
##          NA
  • By default, R drops one category to serve as the reference group.
  • Here, wendys is the reference category for the other chain dummies:
    • relative to wendys, employment changes are
      • very similar for bk (only 0.005 lower),
      • lower for roys (about 1 employee less),
      • even lower for kfc (about 2 employees less).
  • We could choose a different reference chain by omitting a different dummy from the regression.
  • Let us leave out the dummy for roys:
lm(diff_fte ~ nj + hrsopen + bk + kfc + wendys, data=card1994)

##
## Call:
## lm(formula = diff_fte ~ nj + hrsopen + bk + kfc + wendys, data = card1994)
##
## Coefficients:
## (Intercept)           nj      hrsopen           bk          kfc       wendys
##      1.0867       4.8594      -0.3888       1.0054      -0.9863       1.0109
  • Now the coefficients are interpreted relative to roys:
    • the estimate for kfc, which was about -2 before, is now less negative (around -1);
    • the estimates for bk and wendys are now positive because roys was estimated to be lower relative to wendys in the previous regression.

  • In R, it is not necessary to create dummies manually if the categorical variable is stored as text or as a factor.

  • Creating a text variable:

card1994$chain_txt = as.character(card1994$chain) # create text variable
head(card1994$chain_txt) # inspect the first values

## [1] "1" "2" "4" "4" "1" "1"

# Estimate the model
lm(diff_fte ~ nj + hrsopen + chain_txt, data=card1994)

##
## Call:
## lm(formula = diff_fte ~ nj + hrsopen + chain_txt, data = card1994)
##
## Coefficients:
## (Intercept)           nj      hrsopen   chain_txt2   chain_txt3   chain_txt4
##    2.092109     4.859363    -0.388792    -1.991701    -1.005391     0.005512
  • Notice that lm() drops the category that appears first in the text vector ("1").
  • When the variable is stored as text, it is not easy to choose which category will be omitted.
  • For that purpose, we can use a factor object:
card1994$chain_fct = factor(card1994$chain) # create factor variable
levels(card1994$chain_fct) # inspect the factor levels

## [1] "1" "2" "3" "4"

# Estimate the model
lm(diff_fte ~ nj + hrsopen + chain_fct, data=card1994)

##
## Call:
## lm(formula = diff_fte ~ nj + hrsopen + chain_fct, data = card1994)
##
## Coefficients:
## (Intercept)           nj      hrsopen   chain_fct2   chain_fct3   chain_fct4
##    2.092109     4.859363    -0.388792    -1.991701    -1.005391     0.005512
  • Notice that lm() drops the first factor level in the regression, not necessarily the category that appears first in the raw dataset.
  • We can change the reference group using relevel() on a factor variable:
card1994$chain_fct = relevel(card1994$chain_fct, ref="3") # set Roy's as the reference
levels(card1994$chain_fct) # inspect factor levels

## [1] "3" "1" "2" "4"

# Estimate the model
lm(diff_fte ~ nj + hrsopen + chain_fct, data=card1994)

##
## Call:
## lm(formula = diff_fte ~ nj + hrsopen + chain_fct, data = card1994)
##
## Coefficients:
## (Intercept)           nj      hrsopen   chain_fct1   chain_fct2   chain_fct4
##      1.0867       4.8594      -0.3888       1.0054      -0.9863       1.0109
  • Because the first level was changed to "3", that category is now omitted from the regression and becomes the reference group.

Turning Continuous Variables into Categories

# Define cut points
cutpts = c(0, 3, 6, 10)

# Classify the vector 1:10 according to the cut points
cut(1:10, cutpts)

##  [1] (0,3]  (0,3]  (0,3]  (3,6]  (3,6]  (3,6]  (6,10] (6,10] (6,10] (6,10]
## Levels: (0,3] (3,6] (6,10]
Example 7.8: Effects of Law School Ranking on Starting Salaries (Wooldridge, 2006)
  • We want to measure how graduating from a top-10 law school (top10), a school ranked 11-25 (r11_25), 26-40 (r26_40), 41-60 (r41_60), or 61-100 (r61_100) affects log salary relative to schools ranked 101-175 (r101_175).
  • We control for LSAT, GPA, llibvol, and lcost.
data(lawsch85, package="wooldridge") # load required dataset

# Define cut points
cutpts = c(0, 10, 25, 40, 60, 100, 175)

# Create ranking category
lawsch85$rankcat = cut(lawsch85$rank, cutpts)

# Display the first 6 values of rankcat
head(lawsch85$rankcat)

## [1] (100,175] (100,175] (25,40]   (40,60]   (60,100]  (60,100]
## Levels: (0,10] (10,25] (25,40] (40,60] (60,100] (100,175]

# Set the reference category (ranked above 100 up to 175)
lawsch85$rankcat = relevel(lawsch85$rankcat, '(100,175]')

# Estimate the model
res = lm(log(salary) ~ rankcat + LSAT + GPA + llibvol + lcost, data=lawsch85)
round( summary(res)$coef, 5 )

##                 Estimate Std. Error  t value Pr(>|t|)
## (Intercept)      9.16530    0.41142 22.27699  0.00000
## rankcat(0,10]    0.69957    0.05349 13.07797  0.00000
## rankcat(10,25]   0.59354    0.03944 15.04926  0.00000
## rankcat(25,40]   0.37508    0.03408 11.00536  0.00000
## rankcat(40,60]   0.26282    0.02796  9.39913  0.00000
## rankcat(60,100]  0.13159    0.02104  6.25396  0.00000
## LSAT             0.00569    0.00306  1.85793  0.06551
## GPA              0.01373    0.07419  0.18500  0.85353
## llibvol          0.03636    0.02602  1.39765  0.16467
## lcost            0.00084    0.02514  0.03347  0.97336
  • Relative to the lowest-ranked schools ((100,175]), higher-ranked schools are associated with starting salaries that are about 13.16% to 69.96% higher.

Interactions Involving Dummy Variables

Interactions Between Dummy Variables

  • Subsection 6.1.6 of Heiss (2020)
  • Section 7 of Wooldridge (2006)
  • By adding an interaction term between two dummy variables, we can allow the effect of one dummy, interpreted as a change in the intercept, to differ across the two categories of the other dummy (0 and 1).
(Continued) Example 7.5: The Log Wage Equation (Wooldridge, 2006)

  • Return to the wage1 dataset from the wooldridge package.

  • Now include the dummy variable married.

  • The model to be estimated is:

\begin{align} \log(\text{wage}) = &\beta_0 + \beta_1 \text{female} + \beta_2 \text{married} + \beta_3 \text{educ} +\\ &\beta_4 \text{exper} + \beta_5 \text{exper}^2 + \beta_6 \text{tenure} + \beta_7 \text{tenure}^2 + u \end{align} where:

  • wage: average hourly wage
  • female: dummy equal to 1 for women and 0 for men
  • married: dummy equal to 1 for married individuals and 0 for unmarried individuals
  • educ: years of education
  • exper: years of experience (expersq = years squared)
  • tenure: years with the current employer (tenursq = years squared)
# Load the required dataset
data(wage1, package="wooldridge")

# Estimate the model
reg_7.11 = lm(lwage ~ female + married + educ + exper + expersq + tenure + tenursq, data=wage1)
round( summary(reg_7.11)$coef, 4 )

##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)   0.4178     0.0989  4.2257   0.0000
## female       -0.2902     0.0361 -8.0356   0.0000
## married       0.0529     0.0408  1.2985   0.1947
## educ          0.0792     0.0068 11.6399   0.0000
## exper         0.0270     0.0053  5.0609   0.0000
## expersq      -0.0005     0.0001 -4.8135   0.0000
## tenure        0.0313     0.0068  4.5700   0.0000
## tenursq      -0.0006     0.0002 -2.4475   0.0147

  • In this regression, marriage has a positive but statistically insignificant effect of about 5.29% on wages.

  • One possible reason is that marriage may affect men and women differently: it may raise men’s wages while lowering women’s wages.

  • To allow the marriage effect to differ by sex, we can interact married and female using either:

    • lwage ~ female + married + married:female (the : operator adds only the interaction), or
    • lwage ~ female * married (the * operator adds both main effects and the interaction).

  • The model to be estimated now is: \begin{align} \log(\text{wage}) = &\beta_0 + \beta_1 \text{female} + \beta_2 \text{married} + \delta_2 \text{female*married} + \beta_3 \text{educ} + \\ &\beta_4 \text{exper} + \beta_5 \text{exper}^2 + \beta_6 \text{tenure} + \beta_7 \text{tenure}^2 + u \end{align}

# Estimate the model - form (a)
reg_7.14a = lm(lwage ~ female + married + female:married + educ + exper + expersq + tenure + tenursq,
               data=wage1)
round( summary(reg_7.14a)$coef, 4 )

##                Estimate Std. Error t value Pr(>|t|)
## (Intercept)      0.3214     0.1000  3.2135   0.0014
## female          -0.1104     0.0557 -1.9797   0.0483
## married          0.2127     0.0554  3.8419   0.0001
## educ             0.0789     0.0067 11.7873   0.0000
## exper            0.0268     0.0052  5.1118   0.0000
## expersq         -0.0005     0.0001 -4.8471   0.0000
## tenure           0.0291     0.0068  4.3016   0.0000
## tenursq         -0.0005     0.0002 -2.3056   0.0215
## female:married  -0.3006     0.0718 -4.1885   0.0000

# Estimate the model - form (b)
reg_7.14b = lm(lwage ~ female * married + educ + exper + expersq + tenure + tenursq,
               data=wage1)
round( summary(reg_7.14b)$coef, 4 )

##                Estimate Std. Error t value Pr(>|t|)
## (Intercept)      0.3214     0.1000  3.2135   0.0014
## female          -0.1104     0.0557 -1.9797   0.0483
## married          0.2127     0.0554  3.8419   0.0001
## educ             0.0789     0.0067 11.7873   0.0000
## exper            0.0268     0.0052  5.1118   0.0000
## expersq         -0.0005     0.0001 -4.8471   0.0000
## tenure           0.0291     0.0068  4.3016   0.0000
## tenursq         -0.0005     0.0002 -2.3056   0.0215
## female:married  -0.3006     0.0718 -4.1885   0.0000
  • Notice that the coefficient on married now refers only to men, and it is positive and significant at about 21.27%.
  • For women, the effect of marriage is $\beta_2 + \delta_2$, which equals about -8.79% (= 0.2127 - 0.3006).
  • An important hypothesis is H$_0:\ \delta_2 = 0$, which tests whether the intercept shift associated with marriage differs between women and men.
  • In the regression output, the interaction term (female:married) is significant, so the effect of marriage on women is statistically different from the effect on men.

Allowing for Different Slopes

  • Section 7.4 of Wooldridge (2006)
  • Section 7.5 of Heiss (2020)

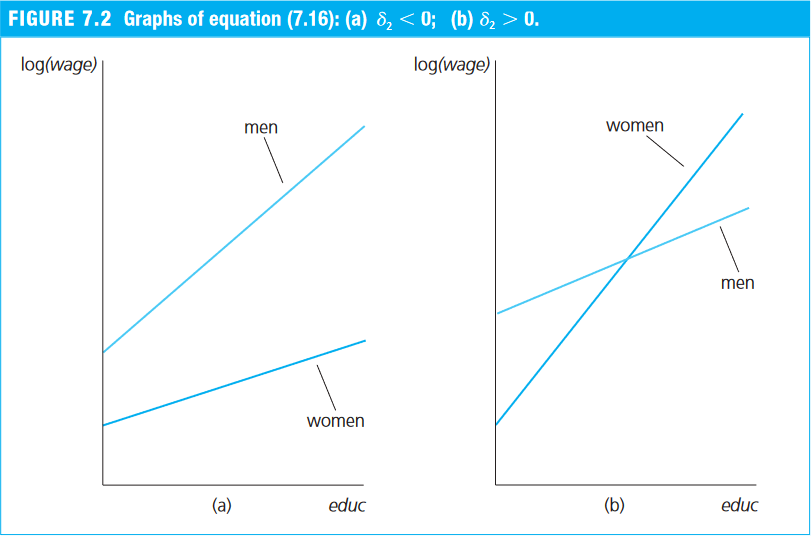

  • By interacting a continuous variable with a dummy, we allow the slope on the continuous variable to differ across the two categories of the dummy (0 and 1).
Example 7.10: The Log Wage Equation (Wooldridge, 2006)
  • Return again to the wage1 dataset from the wooldridge package.
  • Suppose that, in addition to a different intercept, women may also receive a lower return to each additional year of education.
  • We therefore include an interaction between the dummy female and years of education (educ):

\begin{align} \log(\text{wage}) = &\beta_0 + \beta_1 \text{female} + \beta_2 \text{educ} + \delta_2 \text{female*educ} \\ &\beta_3 \text{exper} + \beta_4 \text{exper}^2 + \beta_5 \text{tenure} + \beta_6 \text{tenure}^2 + u \end{align} where:

  • wage: average hourly wage
  • female: dummy equal to 1 for women and 0 for men
  • educ: years of education
  • female*educ: interaction between the dummy female and years of education (educ)
  • exper: years of experience (expersq = years squared)
  • tenure: years with the current employer (tenursq = years squared)
# Load the required dataset
data(wage1, package="wooldridge")

# Estimate the model
reg_7.17 = lm(lwage ~ female + educ + female:educ + exper + expersq + tenure + tenursq,
              data=wage1)
round( summary(reg_7.17)$coef, 4 )

##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)   0.3888     0.1187  3.2759   0.0011
## female       -0.2268     0.1675 -1.3536   0.1764
## educ          0.0824     0.0085  9.7249   0.0000
## exper         0.0293     0.0050  5.8860   0.0000
## expersq      -0.0006     0.0001 -5.3978   0.0000
## tenure        0.0319     0.0069  4.6470   0.0000
## tenursq      -0.0006     0.0002 -2.5089   0.0124
## female:educ  -0.0056     0.0131 -0.4260   0.6703
  • An important hypothesis is H$_0:\ \delta_2 = 0$, which tests whether the return to an additional year of education, that is, the slope, differs between women and men.
  • The estimates suggest that women’s wages rise about 0.56% less per additional year of education than men’s:
    • men’s wages increase by about 8.24% (educ) for each additional year of schooling;
    • women’s wages increase by about 7.58% (= 0.0824 - 0.0056) per additional year of schooling.
  • However, this difference is not statistically significant at the 5% level.

Last updated on Sep 9, 2018
